Roll Genius

Features
- Automatic spring rewinding
- Plastic outer casing
- Steel swivelling wall bracket
- Ratched stop device easilly inspectable and removable by the end user
- Different hoses lengths and sizes available
- Inlet and outer fittings sizes 1/4”- 3/8” GAS according to the hose
- CE approved
- SLOWMOTION INCLUDED
Data sheet

Download the product data sheet.
Download

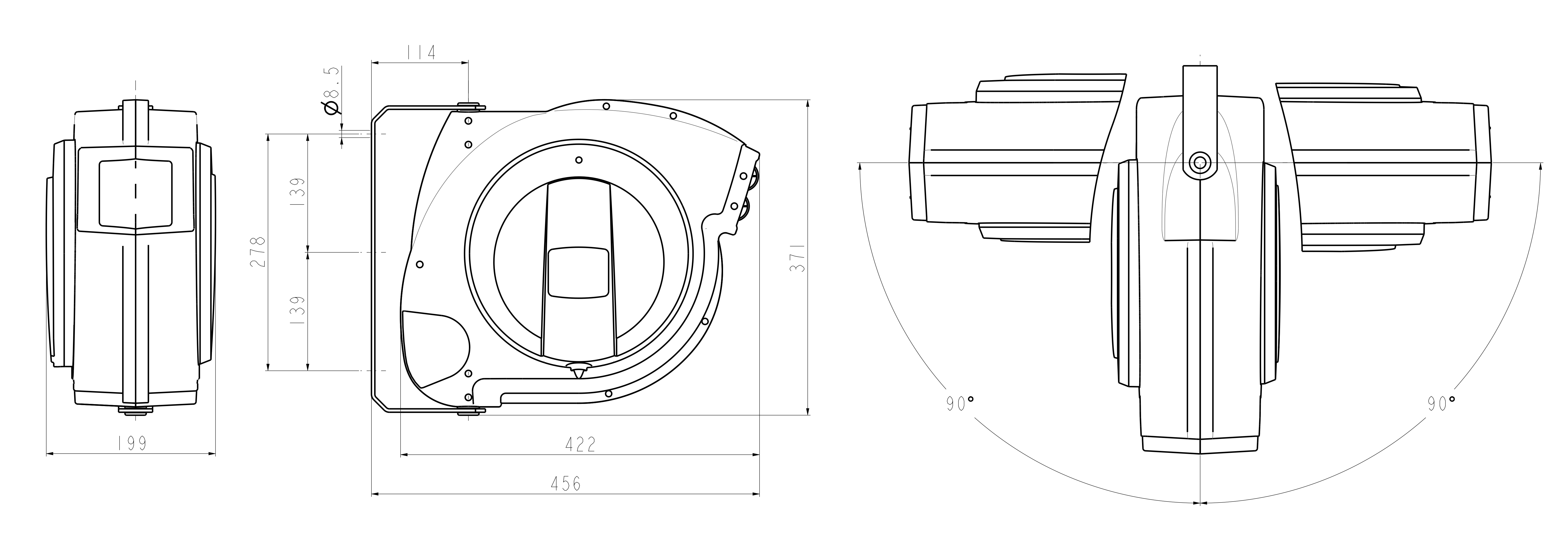

Drawings

Zoom
Parts

Download the parts data sheet.
Download

Optional/Details

Roll Genius

Code	Internal diameter (ID)	Cable length	Inlet fitting	Outlet fitting	Max pressure	Air	Water	Weight	Dimensions (cm)	pcs x Pallet
884100	8 mm	15 m	1/4” F	1/4” M	15 bar	Max 15 bar	Max 40°C	5,1 Kg	42 x 39 x 23	48 pz
884300	10 mm	14+1 m	3/8” F	3/8” M	15 bar	Max 15 bar	Max 40°C	5,6 Kg	42 x 39 x 23	48 pz
