  • Roll Big Profi Automatic
  • Features
    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Different hoses lengths and sizes available
    • Inlet and outer fittings sizes 1/2” GAS
    • CE approved
  • Data sheet

    Download the product data sheet.

    Download

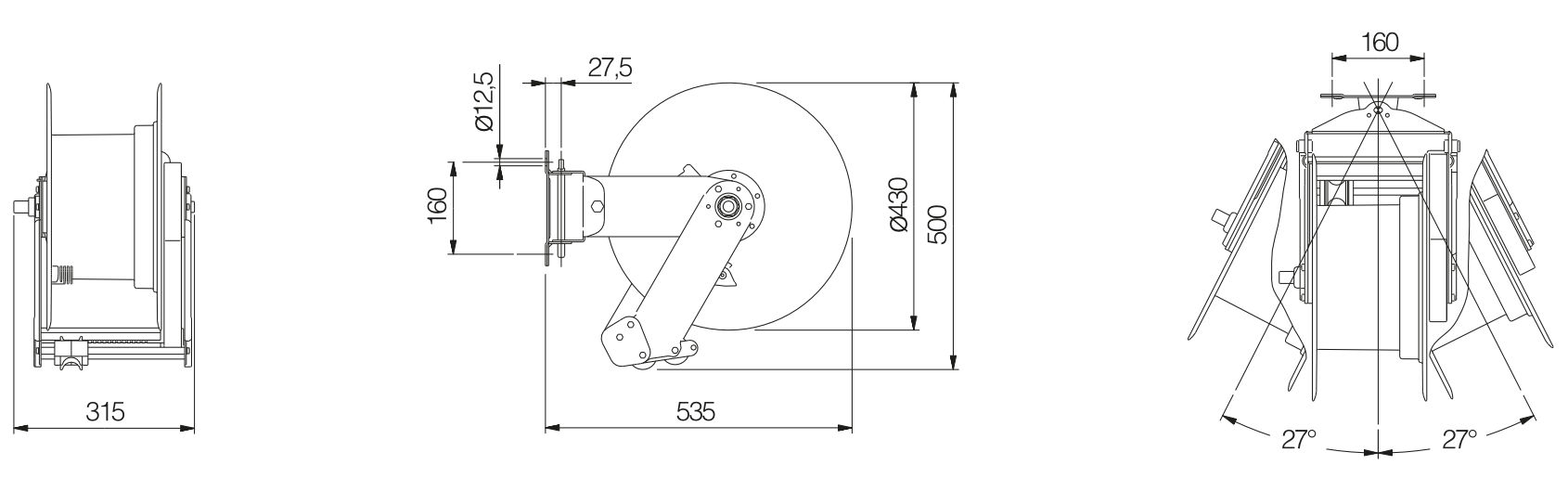

  • Drawings
    190 big profi automatic
    Zoom
  • Parts

    Download the parts data sheet.

    Download





Optional/Details

Convenient rewinding hose guide system
Convenient rewinding hose guide system
Casing made of painted steel with plastic drum
Casing made of painted steel with plastic drum

CodeInternal diameter (ID)Cable lengthCable length Inlet fitting
 Outlet fitting
 Max pressure
 Air
 Water
WeightDimensions (cm)pcs x Pallet
860950
 13 mm
 24+1 m 1/2” M
 1/2” M
 20 bar
 Max 20 bar
 Max 40°C
 18 Kg
 53 x 47 x 38
 10 pz
860960
 16 mm 19+1 m 1/2” M
 1/2” M 20 bar
 Max 20 bar Max 40°C 20 Kg
 53 x 47 x 38
 10 pz
860970
 19 mm 15+1 m 1/2” M 1/2” M 20 bar Max 20 bar Max 40°C 20,5 Kg 53 x 47 x 38
 10 pz
