  • Roll Compact EV Charging Reel
  • Features

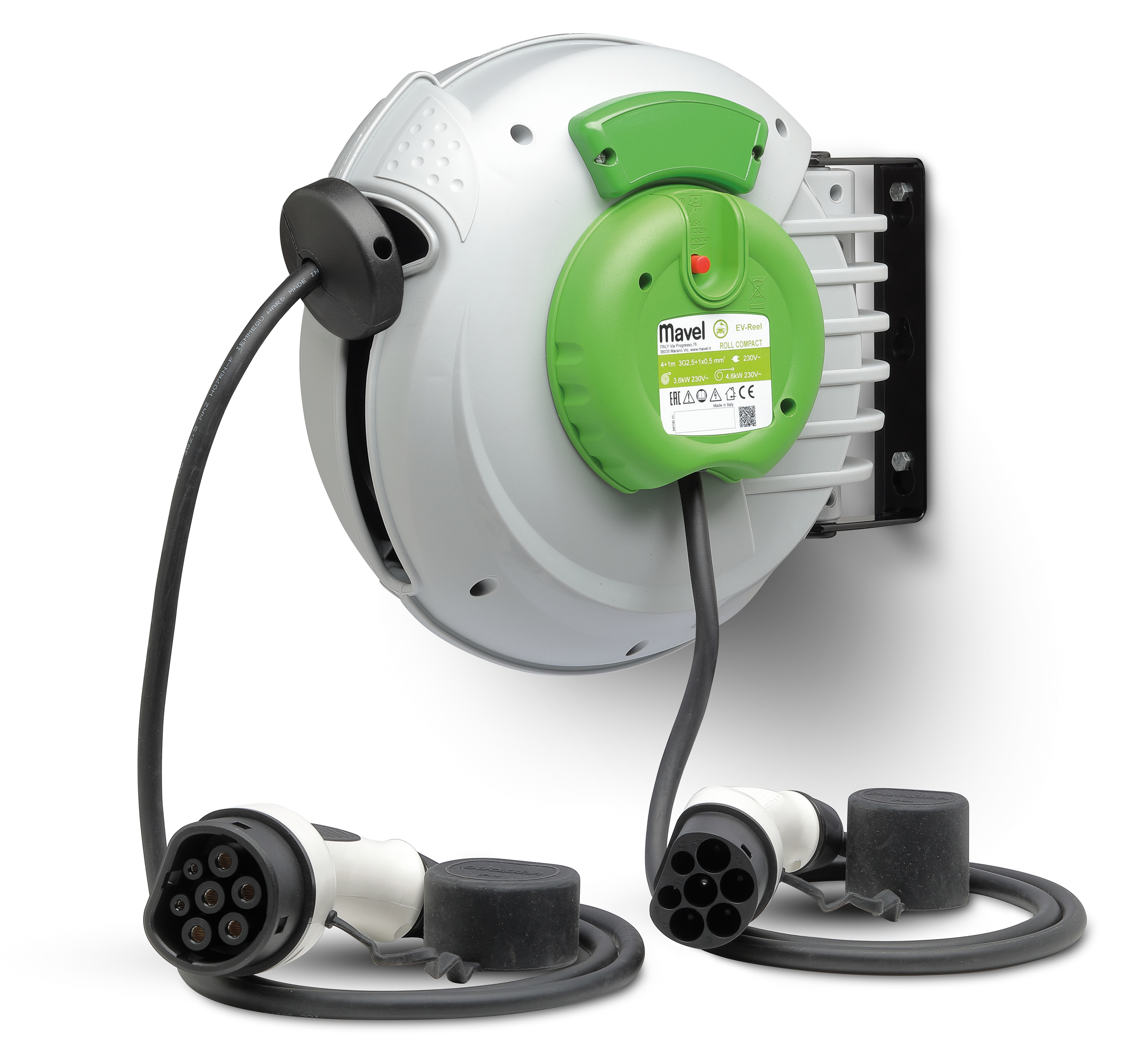

    A step into the future, here and now. Electric cars are a rapidly-developing reality and an electric cable without a reel is like a smartphone with no connection!
    Which is why Mavel came up with and designed a convenient automatic reel, the ev charging reel, the perfect accessory for your wall box.
    Thanks to our ev charging reel, the electric cable used to charge your car will always be unwound to the perfect length, thereby avoiding the annoyance of it resting on the ground, exposed to dirt and pollutants, in addition to risking its rapid deterioration. Perfect for private use, corporate car parks, hotel garages and any location where having a charging source on hand is a necessity.
    The ev charging reel comes with a 5 m cable with type 2 connectors (on the wall box side), and your choice of type 1 or type 2 connectors on the car side.
    In addition, thanks to the exclusive Slow Motion safety system, which slowly retracts the cable, the Mavel cable reel for electric cars satisfies even the most demanding convenience and security requirements.

  • Data sheet

    Download the product data sheet.

    Download

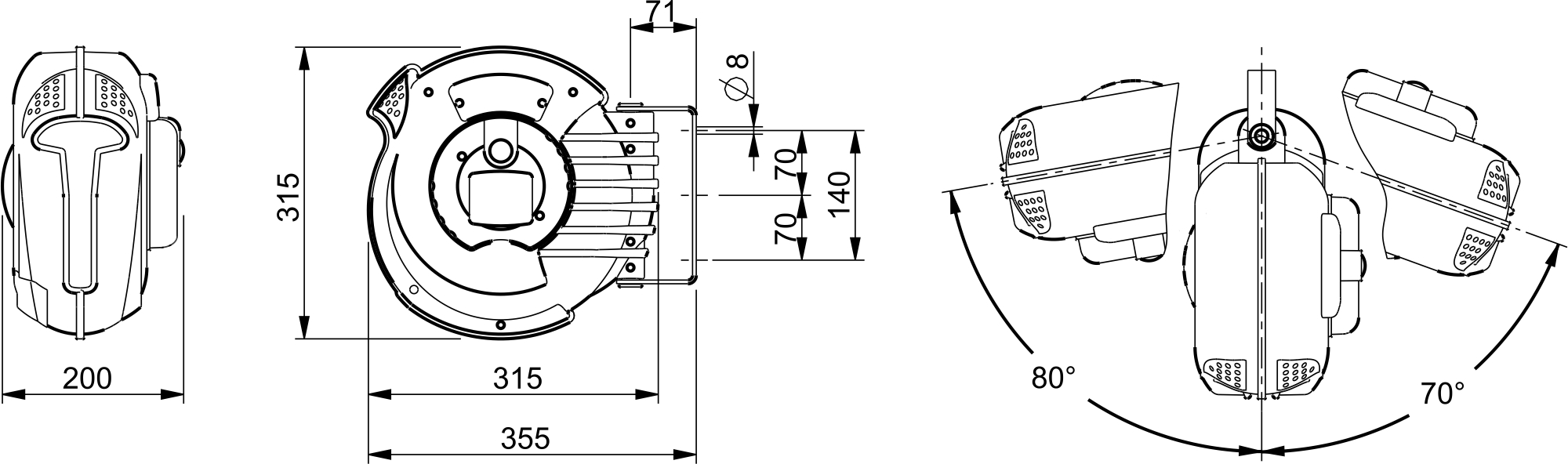

  • Drawings
  • Parts






Optional/Details

++#SLOWMOTION Cod. 707230*--
SLOWMOTION Cod. 707230

Roll Compact

Outlet Plug
Inlet socket
Cable lengthCable length
Code Cable Type
Power with wound cablePower with wound cable

Power with unwound cablePower with unwound cable

Weight Dimensions (cm) Pallet







4,8Kg 55 x 33 x 25
48pz
TYPE 2 TYPE 2 4+1 m 808220
3G2,5+1x0,5 3,6 kW 16 A - 230 V 4,6 kW 20 A - 230 V 4,8Kg 55 x 33 x 25 48pz
